Functionality
Fingerprint
Key card
Password
Mechanical key
Appliance door type
Wood door
Finish
Matt Black
Material
Al, Zn, ABS
Dim. (W x D x H)
Front dimensions: 76 x 25 x 341 mm (include handle)
Back dimensions: 80 x 27 x 359 mm (include handle)

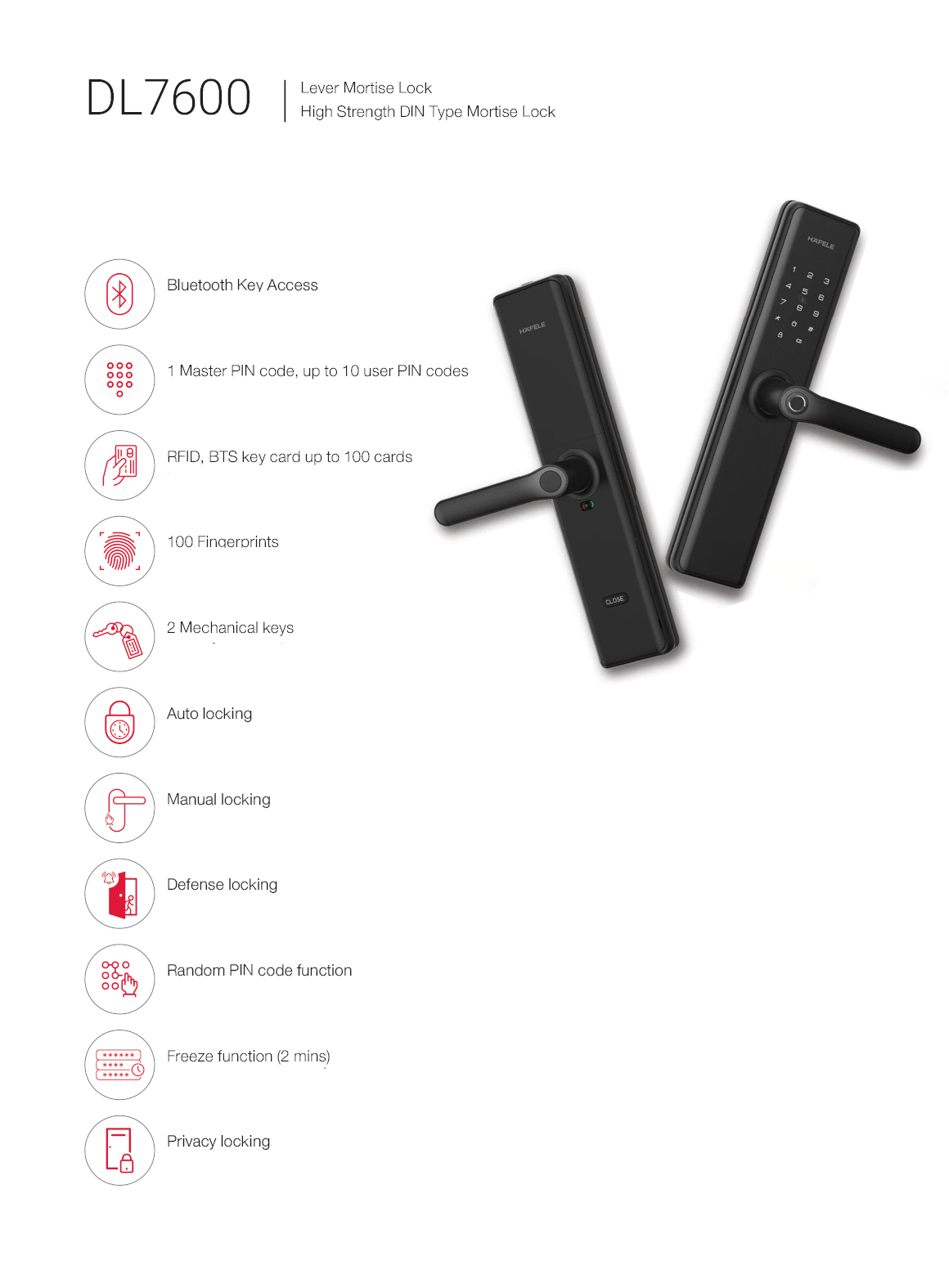

Features
- Away mode / Defense mode to increase security for your house in case no one home
- Auto / Manual locking mode is changable
- Managed by master password and user password
- Häfele Smart Lock APP: Open on smartphone App via Bluetooth; Setting easier; Checking history
- Double verification function by combine 2 in 3 access ways (Fingerprint / Password / Key card)
- Private mode / Double locking mode can be activated from inside
- A password can be entered with a random number to prevent stealing
- Voice guide feature (English / Chinese)
- Smart home intergration with Z-wave module (optional)
- Low-battery warning by sound

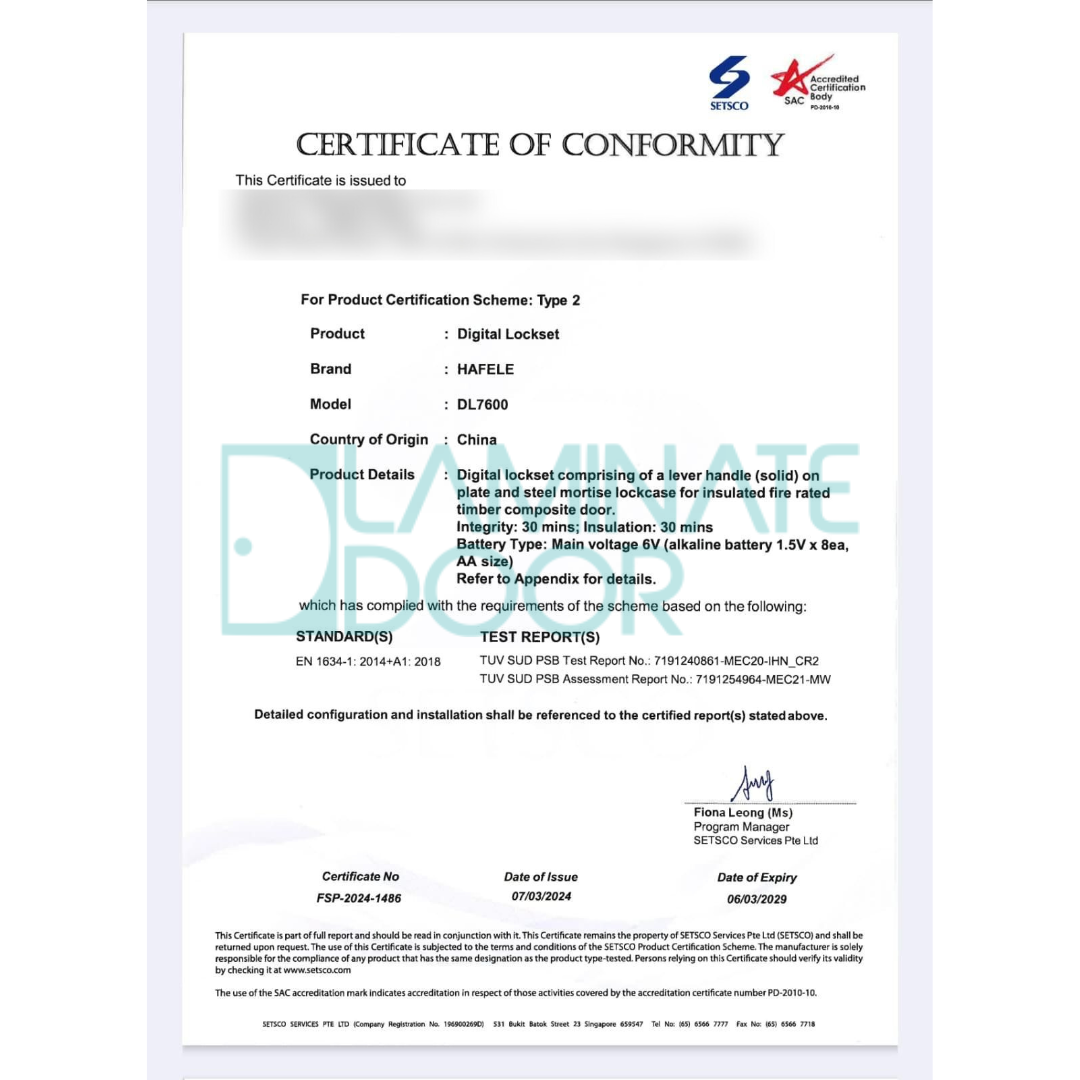

- Tested and achieved fire rating of 30mins
Main voltage
6V (alkaline battery 1.5V x 8ea, AA size)
Operating temperature range
from -25°C to +55°C
Door thickness
35 – 60 mm
Technical data
| Memory storage | Fingerprint: 100 fingerprints
Key card: 100 user cards Password: 1 master password, 10 user passwords |
| Operation temperature | -25 °C to +55 °C |
| Power source | 6V (alkaline battery 1.5V x 8ea, AA size) |
| Emergency power | 5V Power bank via Micro USB port |
| Door type | Wood door |
| Door gap | Minimum 3 mm |
| Door thickness | 35 – 60 mm |
| Door stile | 120 mm |
